3-axis direct drive
HS600
Micro-hole, copper electrode, mirror-finish and precision mold machining- Travel
- 600 × 420 × 260 mm
- Spindle
- 20,000 / 30,000 rpm
DIRECT-DRIVE HIGH-SPEED MACHINING
Direct-drive machine tools
built for speed and precision
TIECHENG CNC focuses on direct-drive 3-axis, full direct-drive trunnion 5-axis and XY direct-drive gantry machining centers for micro-hole, electrode, mold, mirror-finish and complex-surface work.
HS600DIRECT-DRIVE HIGH-SPEED MACHINING CENTER
1 μm3-axis dynamic accuracy test
Autoplay muted · Click to enable sound
3-axisFull direct drive
40 m/minMax. rapid traverse
≤0.002 mmRepeatability
START WITH THE WORKPIECE
Specifications matter. A stable machining result matters more.
Share material, dimensions, tolerances, surface quality and cycle targets. We assess machine, spindle and process together.
Start sample evaluation →PRODUCT MATRIX
Six machines across 3-axis, 5-axis and gantry platforms

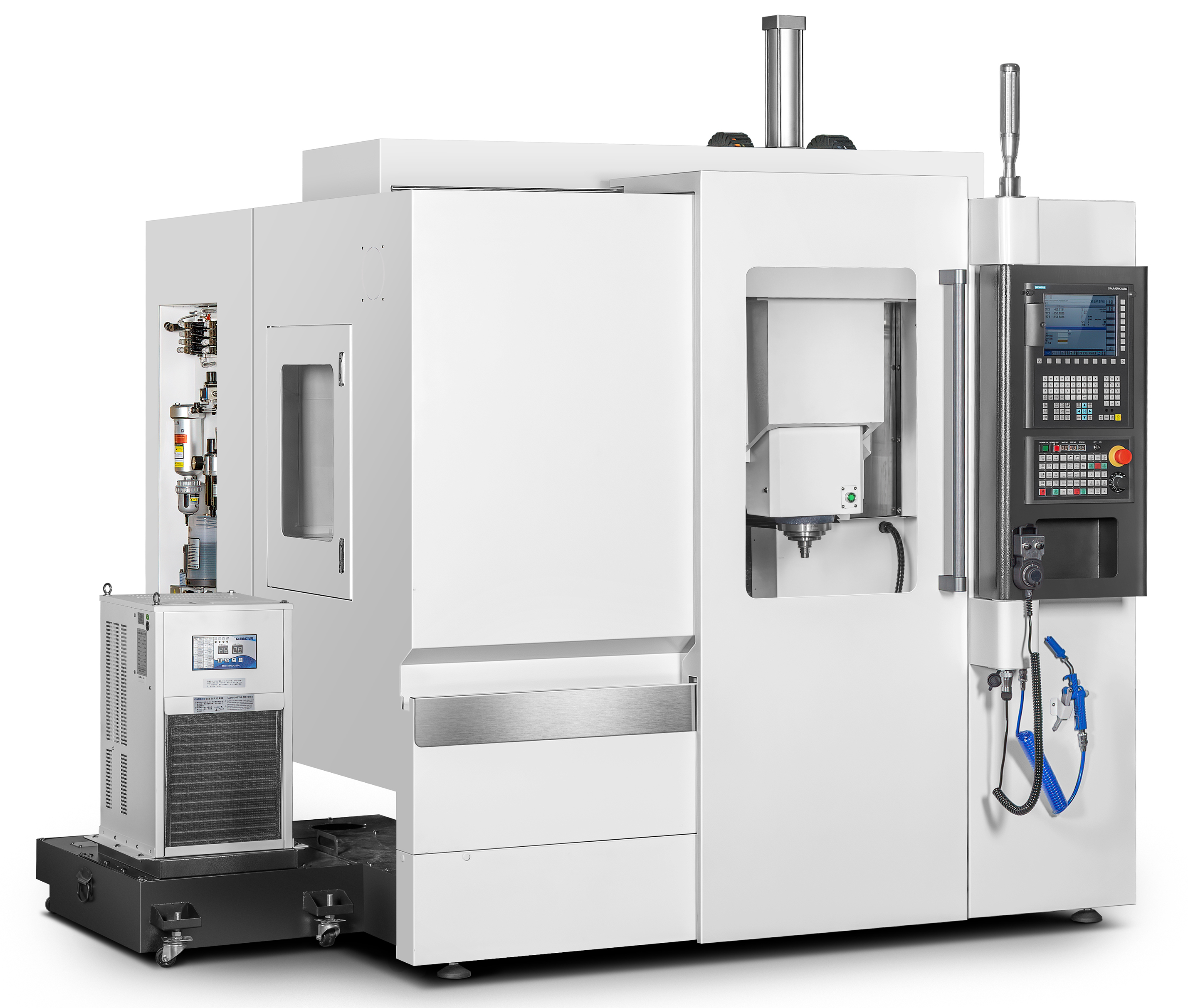

3-axis direct drive
HS860
Larger-travel high-speed, high-precision part machining- Travel
- 800 × 600 × 410 mm
- Spindle
- 20,000 rpm
5-axis trunnion direct drive
MU260
Compact complex surfaces and multi-face single-setup machining- Travel
- 360 × 560 × 300 mm
- Spindle
- 20,000–25,000 rpm
5-axis trunnion direct drive
MU300
High-precision complex parts and simultaneous 5-axis machining- Travel
- 460 × 700 × 410 mm
- Spindle
- 20,000 rpm

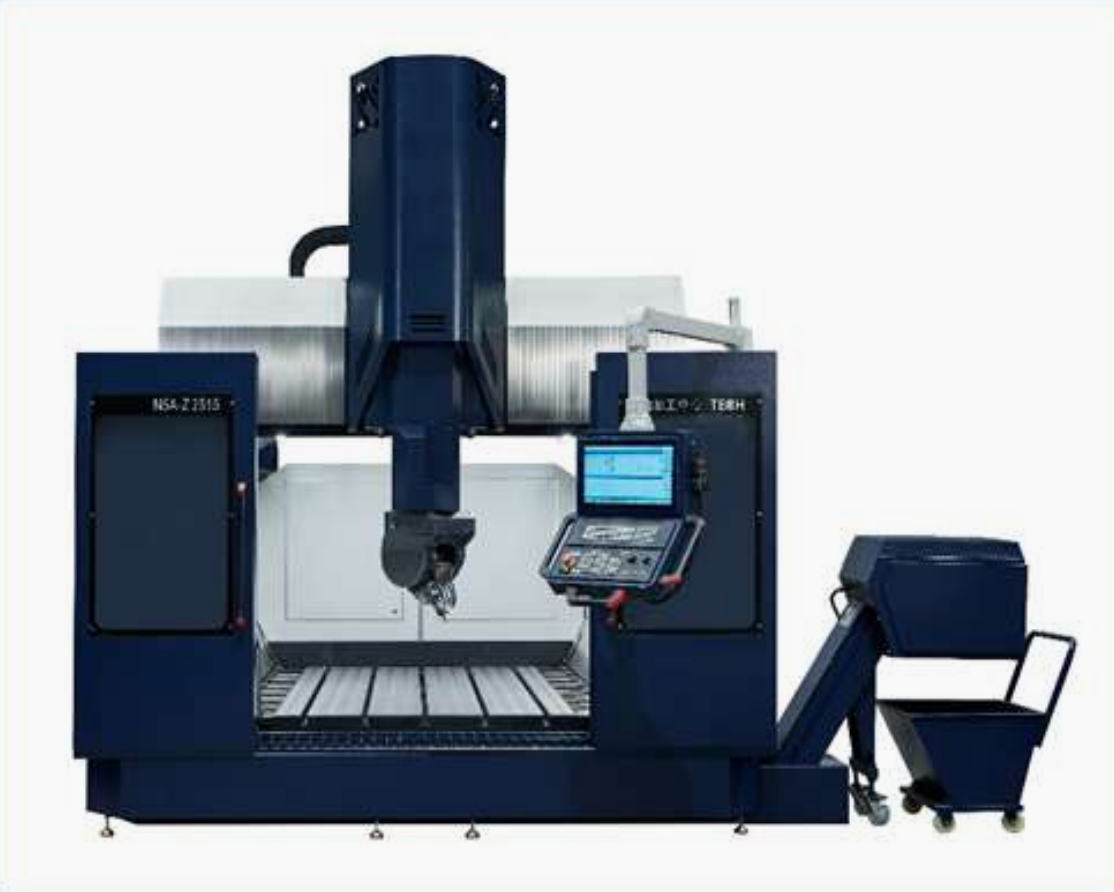

XY direct-drive 5-axis gantry
2516
Medium-to-large precision structures and complex surfaces- Travel
- 2500 × 1600 × 800 mm
- Spindle
- 18,000 rpm
XY direct-drive 5-axis gantry
4024
Large molds and complex structural components- Travel
- 4000 × 2400 × 1200 mm
- Spindle
- 15,000 rpm
DIRECT-DRIVE TECHNOLOGY
A shorter transmission chain for faster, more stable motion
Linear motors apply force directly to moving components, reducing backlash, elastic deformation, friction, wear and thermal growth associated with intermediate transmission parts.
Dual linear motors
Thrust matched to axis load and dynamic targets.
Full closed-loop scales
Direct table-position feedback for precision control.
High-speed spindle
Configured for material, tooling and machining task.
Mechatronic tuning
Control, structure and process are tuned as a system.
APPLICATIONS
From micro-holes to large complex surfaces
Micro-hole & semiconductor
0.1 / 0.15 mm holes, spinnerets, nozzles and precision fixtures
View machining sample →Copper electrode & mirror finish
Deep cavities, fine detail and surface quality with less finishing
View machining sample →Precision mold & 3C
High-speed surface machining for 3C products and precision molds
View machining sample →5-axis complex surfaces
Multi-face machining in one setup to shorten the process chain
View machining sample →Scroll plates
Profiles, floors and precision features of orbiting and fixed scrolls
View machining sample →Precision components
Stable machining in copper, aluminum, steel, titanium alloys and engineering plastics
View machining sample →ALTERNATIVE EVALUATION
Evaluating machining capability in the Makino V33 class?
HS600 targets high-speed precision, micro-hole, electrode, mirror-finish and mold applications. We do not claim blanket equivalence; fit is evaluated from drawings, material, tolerance, finish and cycle time.
Makino and V33 are trademarks or product identifiers of their respective owner. This site is not affiliated with or authorized by Makino.WHY TIECHENG
More than speed: precision engineered across the machine
See machine value through its core systems: structure, drive, feedback, control, spindle thermal management and tuning.
Explore all advantages →High-rigidity gantry structure
A stable foundation for high-speed precision cutting, from bed and column to force flow.
Learn more →Dual-linear-motor full direct drive
Removes ball screws and couplings for faster response and less accuracy loss.
Learn more →Full closed-loop linear scales
Direct table-position feedback keeps control closer to the actual cutting position.
Learn more →SIEMENS high-speed precision control
828D SL control and mold functions balance path speed with surface finish.
Learn more →High-speed spindle and thermal management
Spindle configurations match the material and task, with cooling around critical heat sources.
Learn more →Mechatronic tuning and delivery quality
Structure, control, drive, inspection and process are tuned as one system.
Learn more →SUBMIT A WORKPIECE
Bring the workpiece. Make the machine and process choice precise.
Contact: Ms. Zeng
